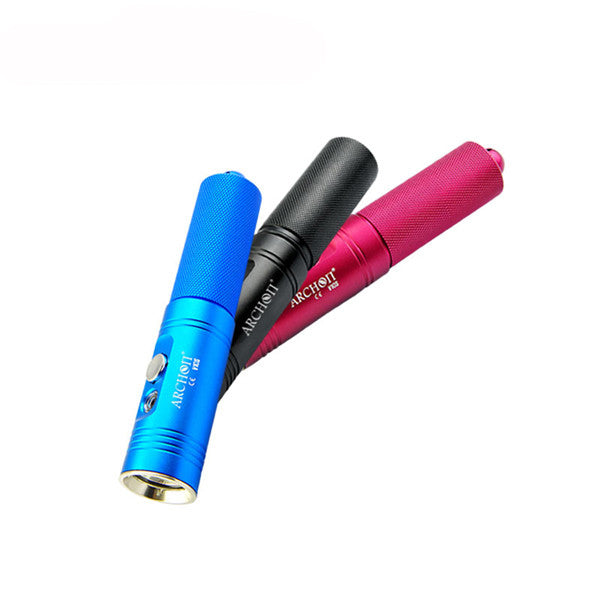

New ARCHON V10S U2 860LM Professional Diving LED Flashlight
Product name: | ARCHON V10S U2 Diving LED Flashlight |
Brand: | ARCHON |
Model: | V10S |
Emitter Type: | U2 |
Color BIN: | 6500K |
Material: | Durable Aircraft-grade Aluminum |
Mode: | High(100%)>Low(30%)>SOS>Off |
Battery Configurations: | 1 X 18650 battery(not included) |
Working Voltage: | 2.8v-4.2v |
Switch Type: | clicky |
Switch Location: | body side of the flashlight |
Brightness: | 860lumens(max) |
Impact Resistant | 1.5 M |
Treatment: | Premium Hard-anodizing |
Runtime: | High: 2.5 hrs Low: 4.0 hrs, SOS: 3.0hrs |
Carrying Strap: | yes |
Waterproof: | Waterproof diving 60meters |
Color: | red,blue and black |
Weight: | 116.4g |
Size: | 137.7 x 29mm (length x diamter) |

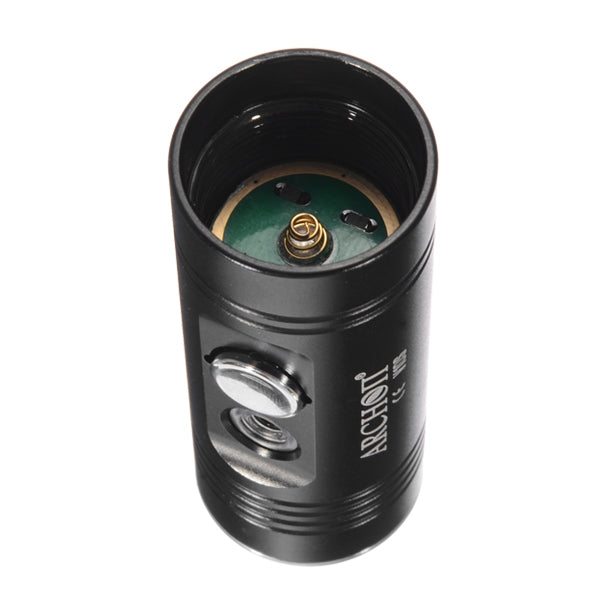

BATTERY INSTALLATION:
1. Remove the light body by turning counter-clockwise.
2. Remove used batteries and replace with fresh batteries as shown by the polarity stickers.
3. Mount the light body by turning clockwise.
ON/OFF AND MODES CHANGING
Click the switch to activate the light.
Successive switch ON-OFF to cycle through high, low, SOS, Off.
BATTERY STATUS INDICATOR:
Light ring around the switch: Above 70% Blue; 70%-40% Green; Below 40%-10% Red; Below 10% Red; Strobe, Below 5% OFF.
SCUBA DIVING APPLICATION
Check closely for cuts, scratches, or an otherwise damaged o-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the o-ring sealing surfaces.
KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.
CAUTION
If the light is not to be used for some time, remove the batteries to prevent possible leakage or corrosion. Please remove the batteries during transportation to prevent it from misoperation.
Package included:
1 x ARCHON V10S U2 Diving LED Flashlight

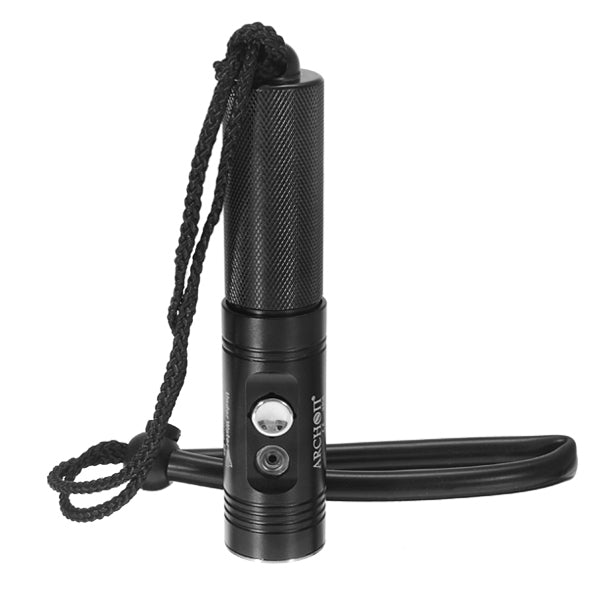

1 x carrying strap
1 x o-rings
